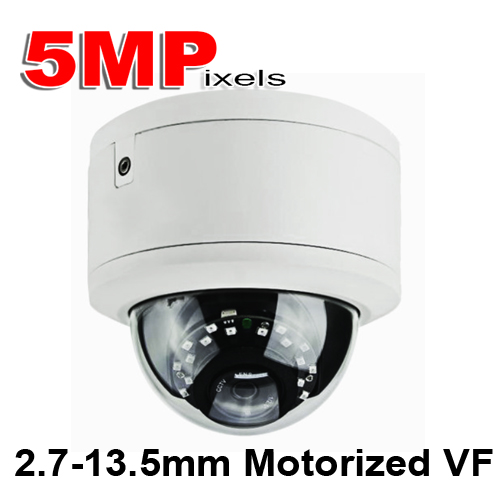

(IPS-405VDWVF) 5MP Motorized Vandal IR Dome w/ 2.7-13.5MM Lens,Plug n Play with Hikvision, IP66 & PoE Built In
• 5MP Outdoor Dome IP 5X IR 20m
• 1/3″OV High-resolution CMOS Sensor
• H.265/H.264 Compression Method
• 2.7-13.5mm 5X Motor Zoom Auto Focus Lens
• IR Distance 20m Max.
• IP66 Outdoor Metal Case
| Image Sensor | 1/3″ OV High-resolution CMOS Sensor |
| Resolution | 5MP |
| Effective Pixels | 2688(H)*1520(V) |
| Compression | H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG |
| TV System | PAL/NTSC |
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec |
| S/N Ratio | ≥52dB |
| Scanning System | Progressive |
| Video Output | Network |
| Reset Button | Optional |
| Lens | |
| Focus Length | 2.7-13.5mm |
| Focus Control | Auto |
| Lens Type | Motorized |
| Pixels | 5MP |
| Night Vision | |
| Infrared LED | 14µ x 18PCS |
| Infrared Distance | 20M |
| IR Status | Under 10 Lux By CDS |
| IR Power On | CDS Auto Control |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP |
| ONVIF | Support ONVIF 2.4 |
| P2P | YES, Support QR Code |
| POE | Internal, Support IEEE 802.3af |
| Video Delay | 0.3S (Within the Lan) |
| Main Stream 1 | 2560*1440@20fps |
| Main Stream 2 | 2304*1296@30fps |
| Main Stream 3 | 1920*1080@30fps 1280*720@30fps |
| Sub Stream 1 | 720*480@20fps 720*480@30fps |
| Sub Stream 2 | / |
| Sub Stream 3 | / |
| Tri Stream | 352*288@20fps 352*288@30fps |
| IE Brower | IE8-11, Google Chrome, Firefox, Safari, Mac Safari |
| Smart Phone | iPhone, iPad, Android, Android Pad |
