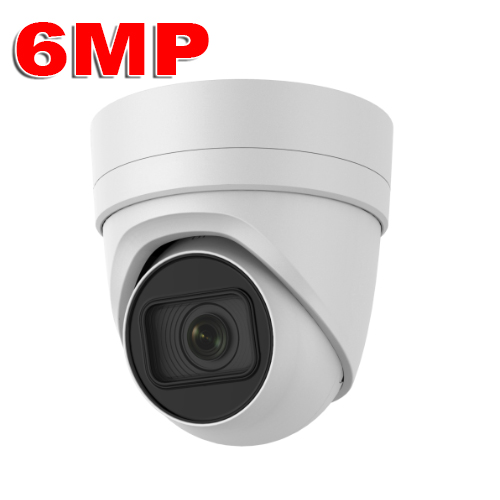

(IPS-2CD2H63G0-IZS) 6MP Motorized Vari-focal EXIR Turret, Exterior

  • 6 Megapixel (3072 × 2048) Resolution
  • Full HD 1080p real-time video
  • True WDR & 3D DNR & BLC
  • EXIR illuminator up to 100ft.
  • IP67
  • PoE
Image Sensor 1/2.9″ progressive scan CMOS
Min. illumination 0.018 lux @ F1.6, AGC ON, 0 lux with IR
Shutter time 1/3s ~ 1/100,000s
Lens 2.8mm – 12mm @ F1.6, angle of view: 97° to 33°
Angle adjustment Pan: 0° ~ 355°, tilt 0° ~ 75°
Digital noise reduction 3D DNR
Wide Dynamic Range True WDR, 120db
Backlight compensation Yes, zone configurable
Video compression H.264 / MJPEG / H.264+ / H.265 / H.265+
Audio input output Yes
H.264 codec profile Main profile
Bit rate 32 Kbps ~ 16 Mbps
Dual stream Yes
Max. image resolution 3072 × 2048
Frame rate 20fps (3072 × 2048), 30fps (2560 x 1440)
Image settings Saturation, brightness, contrast, sharpness adjustable through client software or web browser
Network storage NAS
Alarm trigger Motion detection, tampering alarm
Protocols TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos
System compatibility ONVIF, PSIA, CGI
General functionalities User authentication, watermark
Communication interface 1 RJ45 10M/ 100 M Ethernet interface
Operating conditions -30 °C ~ 60 °C (-22 °F ~ 140 °F) humidity 95% or less (non-condensing)
Power supply 12 VDC +/- 10%, PoE (802.3af)
Power consumption Max, 10W (12.5W with ICR on)
Ingress protection IP67
EXIR range up to 100ft
Dimensions Ø5.35″x5.73″
Weight 2.34lbs.
