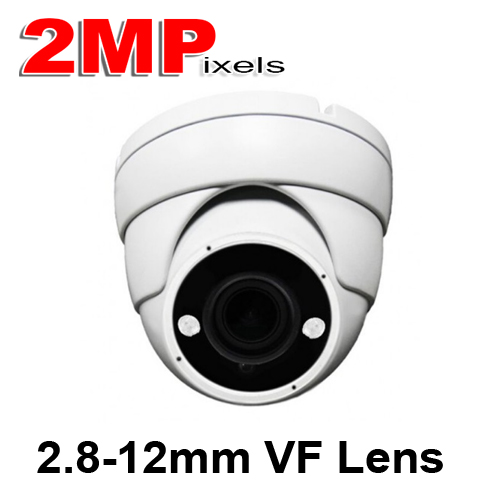

(IPS-4T204D6W) 1080P HD-QUADBRID MOTORIZED IR DOME w/ 2.8-12mm Lens, 2PC 3GIR & DC12V
- 1080P HD-QUADBRID CAMERA
- WORKS ON CVI, TVI, AHD & ANALOG
- IMX323+EN771
- STANDARD LENS: 2.8-12MM MOTORIZED LENS
- UP TO 1500 FEET OF CABLE TRANSMISSION
- DC 12V
| Image Sensor | IMX323+EN771 (CAM421) |
| Effective Pixels | 1920(H) * 1080(V) |
| Resolution | 1080P |
| Scanning System | Progressive |
| Lens | 2.8-12MM MOTORIZED ZOOM LENS |
| Day/Night | ICR filter |
| IR Led | 2PC 3G IR Leds |
| IR distance | 30-35m |
| Minimum Illumination | 0 Lux When IR ON |
| S/N Ratio | More than 50 DB(AGC Off) |
| Video Output | 1-CH HD-CVI or HD-TVI or HD-AHD or Analog: 700TVL Output |
| Frame Rate | 25/30fps@1080P |
| Max. Transmission Range | 500M by CAT5 cable |
| Power Supply | DC12V |
| Operating Temperature | -20 °C ~ + 50 °C |
| Package | 16.3KGs/36PCs, 50*39*35CM |
