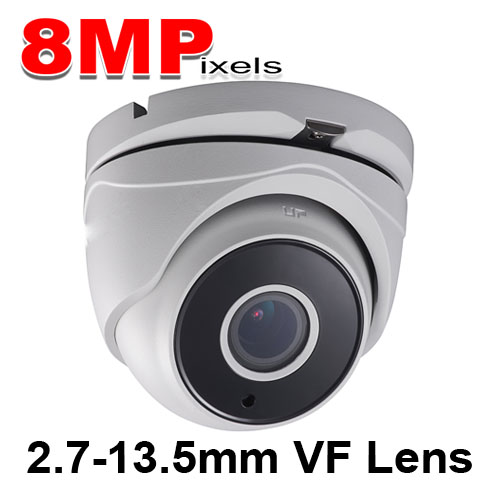

(IPS-2CE79U1T-IT3Z) IVMS 4-in-1 8MP Turbo HD Outdoor Motorized Vari-focal Turret Camera

  • 8MP Video Output
  • 4-in-1 Video Output (TVI, CVI, AHD, CVBS)
  • True Day/Night
  • 2.7 – 13.5mm vari-focal Motorized lens
  • OSD menu, 3D DNR, Smart IR
  • Up to 180ft IR distance
  • Up the Coax(via coaxial cable)
Image Sensor 8.29MP CMOS Sensor
Video Format PAL / NTSC
Max resolution 3840 x 2160
Min. Illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter speed 1/15 s to 1/50,000 s
Lens 2.7-13.5mm
Day & Night ICR
Synchronization Internal synchronization
Video Frame Rate TVI: 15FPS @ 8MP, 20FPS @ 5MP, 30FPS @ 4MP CVI: 15FPS @ 8MP AHD: 20FPS @ 5MP
HD Video Output 1 Analog HD output
Wide Dynamic Range 105dB
S / N Ratio More than 52dB
Scene Indoor, Outdoor, Indoor1, LOW-LIGHT
Camera ID On/off (15 characters, position programmable)
AGC Support
D/N Mode Color/BW/EXT
White Balance ATW, AWC-SET, Indoor, Outdoor, Manua
Privacy Mask On/Off, maximum 2 zones
Motion Detection On/Off, maximum 4 zones
BLC Support
Anti-flicker On/off
Language English, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish, Polish, Russian,
Portuguese, Dutch, Turkish, Hebrew and Arabic
Function Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel
correction, SMART D-ZOOM
Working Temperature / Humidity -40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing)
Power Supply 12 VDC
Power Consumption 12V DC: Max. 8.6W
Weather Proof Ratings IP66
IR Range Up to 180 ft
Communication Up the coax(need UTC controller)
Protocol: Pelco-C(Coaxitron)
Dimensions Φ5.29″ x 4.88″ x 4.39″
Weight 1.28 lb
