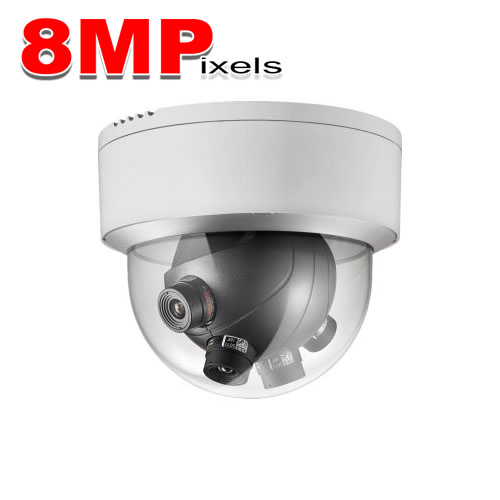

(IPS-2CD6986F-H) 8MP Panaromic IP Dome Camera
- 1/1.8″ Progressive Scan CMOS
- Up to 8 Megapixel (4096 × 1800) High Resolution
- 8MP Real-time Video
- Day / Night
- Audio 1/1 and Alarm 1/1
- Image stitching adjustment
- IP66 Outdoor
| Image Sensor | 1/1.8″ progressive scan CMOS |
| Min. illumination | 0.002 lux@F2.2, AGC ON |
| Shutter time | 1/25s ~ 1/100,000s |
| Lens | 5mm X 4, Pan: 180°, Tilt: 78.4° |
| Angle adjustment | Pan: 0° ~ 360°, Tilt 45° ~ 90° |
| Day & night | IR Cut filter |
| Video compression | H.264 /H.265/ MJPEG |
| Bit rate | 32 Kbps ~ 16 Mbps |
| Max, image resolution | 4096 × 1800 |
| Frame rate | (4096 × 1800) 25/30fps |
| Network storage | NAS, ANR |
| System compatibility | ONVIF, PSIA, CGI, ISAPI |
| Communication interface | 1 RJ45 10M / 100M / 1000M Ethernet port and 1 RS-485 interface |
| WDR | DWDR |
| On-board storage | Built-in SD slot, up to 128 GB |
| Audio | 1/1 |
| Alarm | 1/1 |
| Operating conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) humidity 95% or less (non-condensing) |
| Power supply | DC 12V, AC 24V +/- 10%, PoE (802.3af) |
| Power consumption | 22W |
| Dimensions | Ø 7.67″ x 6.26″ |
| Weight | 2850g (6.28 lbs) |
