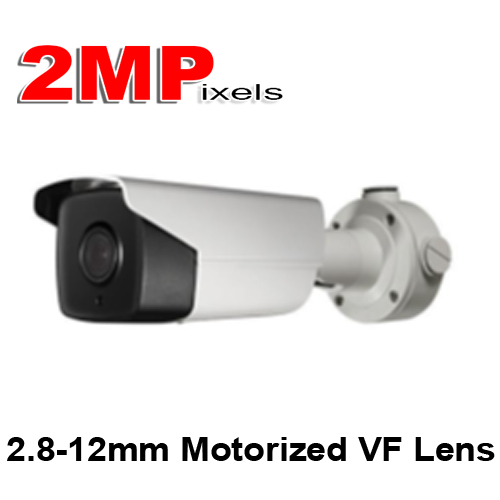

(IPS-2CD4A25FWD-P-IZHS) 2MP Smart IP Motorized VF Bullet for License Plate Recognition, 2.8-12mm Exterior copy

  • 2 Megapixel (1920 x 1080) Resolution
  • Full HD 1080p 60fps recording
  • True WDR & 3D DNR & BLC
  • EXIR illuminators: up to 150ft
  • Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
  • IP67
  • Real Time License Plate Recognition supported with CMS software.
Image Sensor 1/2.8″ progressive scan CMOS
Min. illumination 0.005 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter time 1s ~ 1/100.000s
Lens 2.8-12mm @ F1.4 angle of view: 113°~33.8°
Day & night ICR
Digital noise reduction 3D DNR
Wide dynamic range 140dB
Backlight compensation Yes, zone configurable
Video compression H.264 / H.264+ / MJPEG / MPEG4
H.264 compression profile Main profile
Bit rate 32 Kbps ~ 16 Mbps
Dual stream Yes
Max. image resolution 1920 x 1080
Frame rate 60Hz: 60fps (1920 x 1080), 60fps (1280 x 720)
Image settings Saturation, brightness, contrast, sharpness adjustable through client software or web browser
On board Storage Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
Audio 1/1
Alarm 1/1
Alarm trigger Motion detection, tampering alarm
Protocols TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos
System compatibility ONVIF, PSIA, CGI
General functionalities User authentication, watermark
Communication interface 1 RJ45 10M/ 100 M Ethernet interface
Operating conditions -30°C ~ 60°C (-22°F ~ 140°F) humidity 90% or less (non-condensing)
Power supply 12 VDC ± 10%, PoE (802.3at)
Power consumption Max. 15W
Ingress protection IP67
EXIR range up to 150ft
Dimensions 100×103.9×311.8mm (3.93″x4.09″x12.28″)
Weight 2000g (4.41 lbs)
