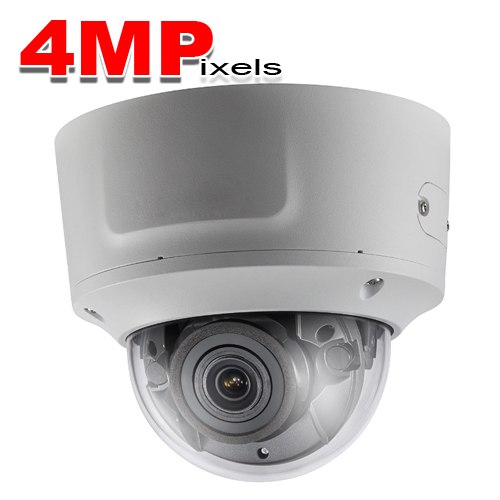

(IPS-2CD2742FWD-IZS) 4MP VF IR Motorized Zoom, Vandal-Proof Dome With Audio, Exterior

  • Full HD 1080p real-time video
  • 4 Megapixel (2688 x 1520) Resolution
  • IR LEDs: up to 90ft
  • Supports H.265
  • Support onboard storage (up to 128GB)
  • IP67 & IK10
  • Vandal-proof
  • Motorized Zoom
Image Sensor 1/3″ progressive scan CMOS
Min. illumination 0.01 lux @ (F1.2, AGC ON), 0 lux with IR
Shutter time 1/3s ~ 1/100,000s
Lens 2.8 ~ 12mm @ F1.4, Angle of view: 88° ~ 29°
Day & night ICR
digital noise reduction 3D DNR
Wide dynamic range 120dB
Angel adjustment Pan: 0° ~ 355°, tilt 0° ~ 75°
Video compression H.264 / MJPEG / H.264+ / H.265 / H.265+
Max. image resolution 2688 x 1520
Frame rate 30fps (2688 × 1520)
Audio 1/1
Network storage NAS
Alarm 1/1
Protocols TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos
System compatibility ONVIF, PSIA, CGI
General functionalities User authentication, watermark, dual stream
Communication interface 1 RJ45 10M/ 100 M Ethernet interface
Onboard storage Built-in Micro SD slot, up to 128 GB
Operating conditions -30 °C ~ 60 °C (-22 °F ~ 140 °F) humidity 95% or less (non-condensing)
Power supply 12 VDC +/- 10%, PoE (802.3af)
Power consumption Max. 12W
Impact protection IK10
Ingress protection level IP67
IR range Up to 90ft
Dimensions Ø 6.04″ x 5.24″
Weight 2.84 lbs.
