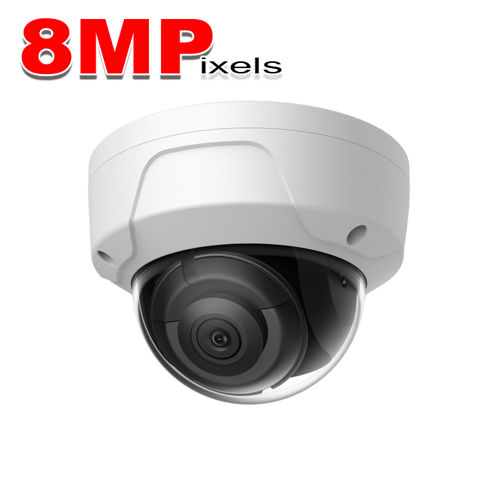

(IPS-2CD2185FWD-IS) 8MP 2.8mm Lens True WDR Fixed Mini Dome with Audio Support, Exterior
- 8 Megapixel (3840×2160) Resolution
- Full HD 5MP(2944×1656) real-time video
- 3D DNR, True WDR, BLC
- IP67 & IK10 Rating
- PoE
- Vandal-proof
- Audio and Alarm
| Image Sensor | 1/2.5″ progressive scan CMOS |
| Min. illumination | 0.01 lux @ (F1.2, AGC ON), 0 lux with IR |
| Shutter time | 1/3s ~ 1/100,000s |
| Lens | 2.8mm @ F1.2, angle of view: 102° (OPTIONAL: 4mm / 6mm lens) |
| Angle adjustment | Pan: -90° ~ 90°, tilt 0° ~ 75°, Rotation: 0-355° |
| Digital noise reduction | 3D DNR |
| Wide dynamic range | True WDR |
| Day & night | ICR |
| Video compression | H.265 / H.264+ / H.264 / MJPEG |
| Dual stream | Yes |
| Audio | 1 / 1 |
| Alarm | 1 / 1 |
| Max. image resolution | 3840×2160 |
| Frame rate | 20fps(3840×2160), 30fps(2944×1656), 30fps(2560×1440), 30fps(1920×1080) |
| Image settings | Saturation, brightness, contrast, sharpness adjustable through client software or web browser |
| BLC | Yes, zone configurable |
| On Board Storage | Micro SD slot, up to 128GB |
| Alarm trigger | Motion detection, tampering alarm |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos |
| System compatibility | ONVIF, PSIA, CGI |
| General functionalities | User authentication, watermark |
| Communication interface | 1 RJ45 10M / 100M Ethernet interface |
| Operating conditions | -30°C ~ 60°C (-22°F ~ 140°F) humidity 90% or less (non-condensing) |
| Power supply | 12 VDC +/- 10%, PoE (802.3af) |
| Power consumption | Max, 9W |
| Ratings | IP67 / IK10 |
| IR range | Up to 90ft |
| Dimensions | Ø 4.4″x3.2″ |
| Weight | 500g (1.1 lbs) |
