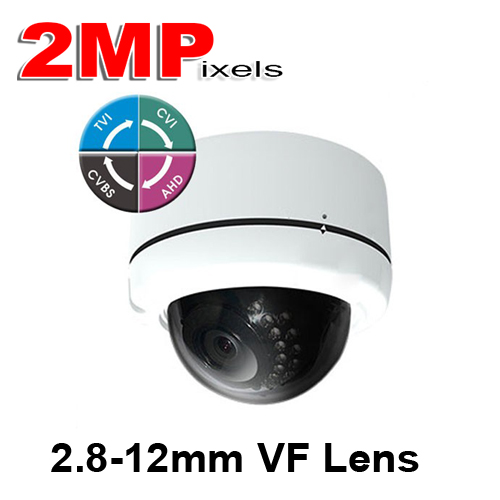

(IPS-205DW19) 1080P HD-QUADBRID IR VANDAL ARMOR DOME w/ 2.8-12mm Lens, 30PCS IR & DC12V CAMERA
- 1080P HD-QUADBRID CAMERA
- WORKS ON CVI,TVI,AHD & ANALOG
- Sensor Sony IMX322
- STANDARD LENS: 2.8-12MM VARIFOCAL LENS
- UP TO 1500 FEET OF CABLE TRANSMISSION
- DC 12V
| Image Sensor | Sensor Sony IMX322 |
| Effective Pixels | 1920(H) * 1080(V) |
| Resolution | 1080P |
| Scanning System | Progressive |
| Lens | 2.8-12mm lens |
| Day/Night | ICR filter |
| IR Led | 30PC IR Leds |
| IR distance | 35-40m |
| Minimum Illumination | 0 Lux When IR ON |
| S/N Ratio | More than 50 DB(AGC Off) |
| Video Output | 1-CH HD-CVI or HD-TVI or HD-AHD or Analog Output |
| Frame Rate | 25/30fps@1080P |
| Max. Transmission Range | 500M by CAT5 cable |
| Power Supply | DC12V |
| Operating Temperature | -20 °C ~ + 50 °C |
| Package | 16.3KGs/36PCs, 50*39*35CM |
